MacBook Pro Technical Specifications

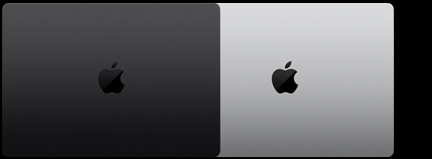

Space Black Silver
Apple M5 chip
- 10‑core CPU with 4 performance cores and 6 efficiency cores
- 10‑core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16‑core Neural Engine
- 153GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode and
decode engine - AV1 decode
Apple M4 Pro chip
- 12‑core CPU with 8 performance cores and 4 efficiency cores
- 16‑core GPU
- Not available
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 273GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode
and decode
engine - AV1 decode
Configurable to:
- M4 Pro with 14‑core CPU and 20‑core GPU
- or M4 Max with 14‑core CPU and 32‑core GPU (410GB/s memory bandwidth)
- or M4 Max with 16‑core CPU and 40‑core GPU (546GB/s memory bandwidth)
Apple M4 Pro chip
- 14‑core CPU with 10 performance cores and 4 efficiency cores
- 20‑core GPU
- Not available
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 273GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode
and decode
engine - AV1 decode
Configurable to:
- M4 Max with 14‑core CPU and 32‑core GPU (410GB/s memory bandwidth)
- or M4 Max with 16‑core CPU and 40‑core GPU (546GB/s memory bandwidth)
Apple M4 Max chip
- 14‑core CPU with 10 performance cores and 4 efficiency cores
- 32‑core GPU
- Not available
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 410GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two Video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Configurable to:
M4 Max with 16‑core CPU and 40‑core GPU (546GB/s memory bandwidth)
Apple Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

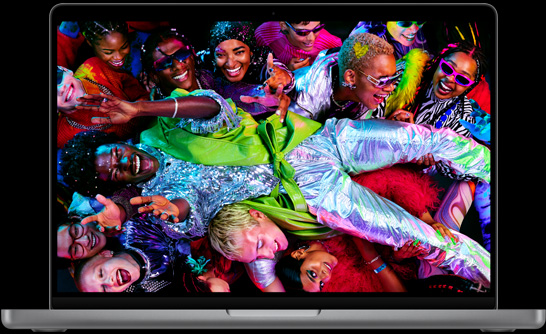

Learn moreLiquid Retina XDR display
- 14.2-inch (diagonal) Liquid Retina XDR display;2 3024x1964 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 1,000,000:1 contrast ratio
- XDR brightness: 1,000 nits sustained full-screen, 1,600 nits peak3 (HDR content only)
- SDR brightness: up to 1,000 nits (outdoor)
Colour
- 1 billion colours
- Wide colour (P3)
- True Tone technology
Refresh rates
- ProMotion technology for adaptive refresh rates up to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Configurable with:
- Nano-texture display
16GB or 24GB
- 16GB or 24GB unified memory
Configurable to:
- 24GB or 32GB
24GB
- 24GB unified memory
Configurable to:
- 36GB (M4 Max with 14‑core CPU)
- or 48GB (M4 Pro and M4 Max with 16‑core CPU)
- or 64GB or 128GB (M4 Max with 16‑core CPU)
24GB
- 24GB unified memory
Configurable to:
- 36GB (M4 Max with 14‑core CPU)
- or 48GB (M4 Pro and M4 Max with 16‑core CPU)
- or 64GB or 128GB (M4 Max with 16‑core CPU)
36GB
- 36GB unified memory
Configurable to:
- 48GB, 64GB or 128GB (M4 Max with 16‑core CPU)
M54
- Up to 24 hours video streaming
- Up to 16 hours wireless web
- 72.4‑watt‑hour lithium‑polymer battery
- USB‑C to MagSafe 3 Cable
- Supports charging via a USB-C power adapter or other USB PD power source
- Minimum wattage required to charge the device: 60W
- Fast‑charge capable with 96W or higher
M4 Pro5
- Up to 22 hours video streaming
- Up to 14 hours wireless web
- 72.4‑watt‑hour lithium‑polymer battery
- 70W USB‑C Power Adapter (included with M4 Pro with 12‑core CPU)
- 96W USB‑C Power Adapter (included with M4 Pro with 14‑core CPU, configurable with M4 Pro with 12‑core CPU)
- USB‑C to MagSafe 3 Cable
- Fast‑charge capable with 96W or higher USB‑C Power Adapter
M4 Max5
- Up to 18 hours video streaming
- Up to 13 hours wireless web
- 72.4‑watt-hour lithium‑polymer battery
- 96W USB‑C Power Adapter
- USB‑C to MagSafe 3 Cable
- Fast‑charge capable with included 96W or higher USB‑C Power Adapter
SDXC card slot
HDMI port
3.5mm headphone jack
MagSafe 3 port
M5
- Three Thunderbolt 4 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 4 (up to 40Gb/s)
- USB 4 (up to 40Gb/s)
headphone jack
M4 Pro and M4 Max
- Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
headphone jack
M5 and M4 Pro
- Simultaneously supports full native resolution on the built-in display at 1 billion colours and:
- Up to two external displays with up to 6K resolution at 60Hz over Thunderbolt, or one external display with up to 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI
- One external display supported at 8K resolution at 60Hz or one external display at 4K resolution at 240Hz over HDMI
M4 Max
- Simultaneously supports full native resolution on the built-in display at 1 billion colours and:
- Up to four external displays: up to three external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI
- Up to three external displays: up to two external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 8K resolution at 60Hz or one external display with 4K resolution at 240Hz over HDMI
Thunderbolt 4 digital video output
Support for native DisplayPort 1.4 output over USB-C
Thunderbolt 5 digital video output
Support for native DisplayPort 2.1 output over USB‑C
HDMI digital video output
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Supported formats include HEVC, H.264, AV1 and ProRes
- HDR with Dolby Vision, HDR10+/HDR10 and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos

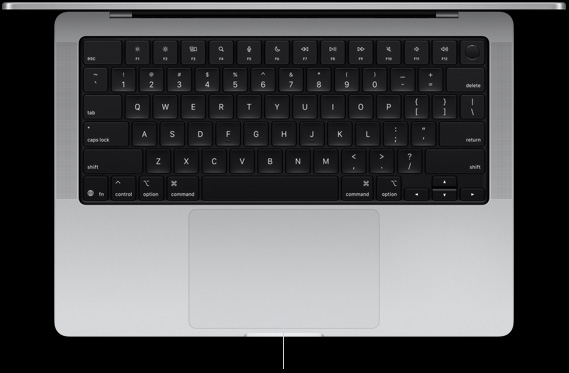

Backlit Magic Keyboard with:
- 78 (US) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted “T” arrangement
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing and Multi‑Touch gestures
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- High‑fidelity six‑speaker sound system with force‑cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built‑in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro and AirPods Max9
- Studio‑quality three‑mic array with high signal‑to‑noise ratio and directional beamforming
- 3.5mm headphone jack with advanced support for high‑impedance headphones
- HDMI port supports multi‑channel audio output
Accessibility features help people with disabilities get the most out of their new MacBook Pro. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.
Learn moreFeatures include:
- Voice Control
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Siri and Dictation
- Switch Control
- Closed Captions
- Text to Speech

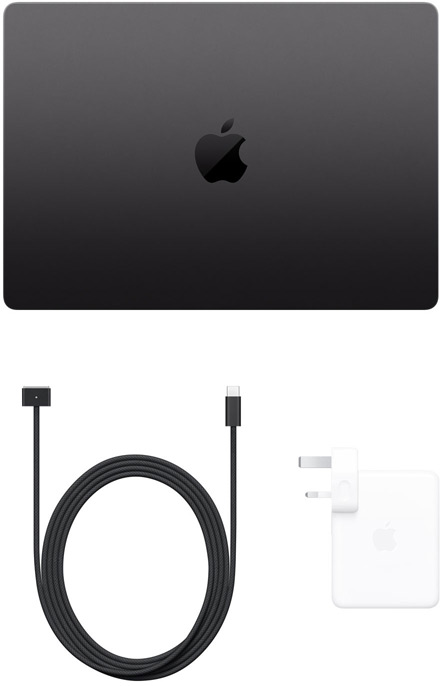

M5
- 14‑inch MacBook Pro
- USB‑C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture display option)
- Power adapter sold separately
M4 Pro with 12‑core CPU
- 14‑inch MacBook Pro
- 70W USB‑C Power Adapter
- USB‑C to MagSafe 3 Cable (2m)
- Polishing cloth (only with nano-texture display option)

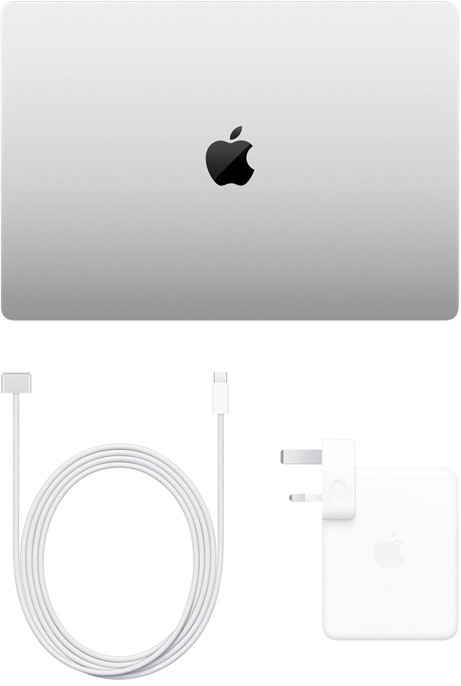

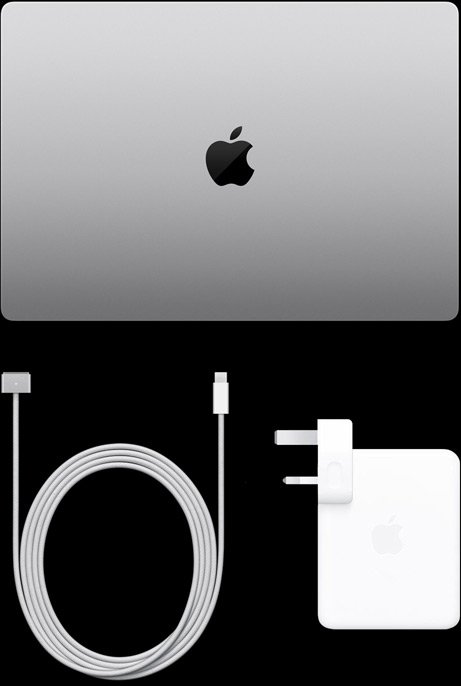

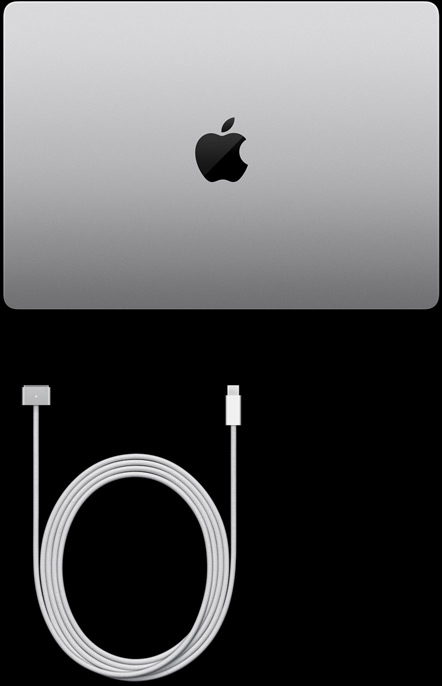

M4 Pro with 14‑core CPU or M4 Max
- 14‑inch MacBook Pro
- 96W USB‑C Power Adapter
- USB‑C to MagSafe 3 Cable (2m)
- Polishing cloth (only with nano‑texture display option)
In the United Kingdom, consumers are entitled to a free-of-charge repair or replacement, by the seller, of goods that do not conform with the contract of sale. Under English law, consumers have up to six years from the date of delivery to exercise their rights; however, various factors may impact your eligibility to receive these remedies. For more details, click here.
Your MacBook Pro also comes with 90 days of complimentary technical support and a one-year limited warranty from Apple. To learn more about how Apple will service your MacBook Pro, click here.
Purchase AppleCare+ to get expert technical support and hardware coverage, including unlimited repairs for accidental damage from handling, each subject to an excess fee. For more information, click here.
- Configure your MacBook Pro with these options at apple.com:
M5
- 24GB or 32GB unified memory
- 1TB, 2TB or 4TB SSD
- 70W USB-C Power Adapter
- 96W USB-C Power Adapter
- Nano-texture display
M4 Pro and M4 Max
- M4 Pro with 14‑core CPU, 20‑core GPU and 16‑core Neural Engine
- M4 Max with 14‑core CPU, 32‑core GPU and 16‑core Neural Engine
- M4 Max with 16‑core CPU, 40‑core GPU and 16‑core Neural Engine
- 36GB unified memory (M4 Max with 14‑core CPU)
- 48GB unified memory (M4 Pro and M4 Max with 16‑core CPU)
- 64GB unified memory (M4 Max with 16‑core CPU)
- 128GB unified memory (M4 Max with 16‑core CPU)
- 1TB, 2TB or 4TB SSD (M4 Pro and M4 Max)
- 8TB SSD (M4 Max)
- 96W USB‑C Power Adapter (included with M4 Pro with 14‑core CPU and M4 Max)
- Nano-texture display
and
the
Environment
Environmental impact
The 14‑inch MacBook Pro is designed to reduce environmental impact:13
See the 14‑inch MacBook Pro (M5) Product Environmental Report (PDF) See the 14‑inch MacBook Pro (M4 Pro or M4 Max) Product Environmental Report (PDF)Progress towards Apple 2030
Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonise products is rigorous and focuses on transitioning to low‑carbon electricity, designing with recycled and low‑carbon materials and prioritising lower‑carbon ways of shipping products, like sea freight.
See Apple’s commitmentMaterials
The 14‑inch MacBook Pro (M4 Pro or M4 Max) is made with 35% recycled content and the 14‑inch MacBook Pro (M5) is made with 45% recycled content,14 including:
- 100% recycled aluminium in the enclosure
- 100% recycled rare earth elements in all magnets
- 100% recycled gold plating and tin solder in multiple printed circuit boards
- 100% recycled copper in multiple printed circuit boards and a thermal module component
- 90% recycled steel in the keyboard feature plate
Energy
- 45% of manufacturing electricity for the 14‑inch MacBook Pro is sourced from low‑carbon electricity15
- ENERGY STAR® certified16
Packaging
- 100% fibre‑based packaging17
Waste
No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Programme18
Smarter chemistry19
All of the materials used in Apple products, accessories and packaging are covered by the requirements of our Regulated Substances Specification, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report to understand Apple’s recent efforts in phasing out these chemistries.

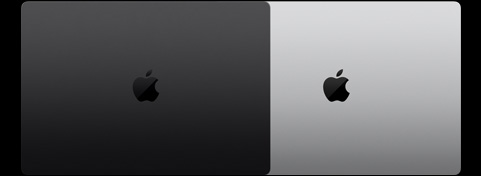

Space Black Silver
Apple M4 Pro chip
- 14‑core CPU with 10 performance cores and 4 efficiency cores
- 20‑core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 273GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode
and decode
engine - AV1 decode
Configurable to:
- M4 Max with 14‑core CPU and 32‑core GPU (410GB/s memory bandwidth)
- or M4 Max with 16‑core CPU and 40‑core GPU (546GB/s memory bandwidth)
Apple M4 Pro chip
- 14‑core CPU with 10 performance cores and 4 efficiency cores
- 20‑core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 273GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode
and decode
engine - AV1 decode
Configurable to:
- M4 Max with 14‑core CPU and 32‑core GPU (410GB/s memory bandwidth)
- or M4 Max with 16‑core CPU and 40‑core GPU (546GB/s memory bandwidth)
Apple M4 Max chip
- 14‑core CPU with 10 performance cores and 4 efficiency cores
- 32‑core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 410GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two Video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Configurable to:
M4 Max with 16‑core CPU and 40‑core GPU (546GB/s memory bandwidth)
Apple M4 Max chip
- 16‑core CPU with 12 performance cores and 4 efficiency cores
- 40‑core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 546GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two Video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Apple Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

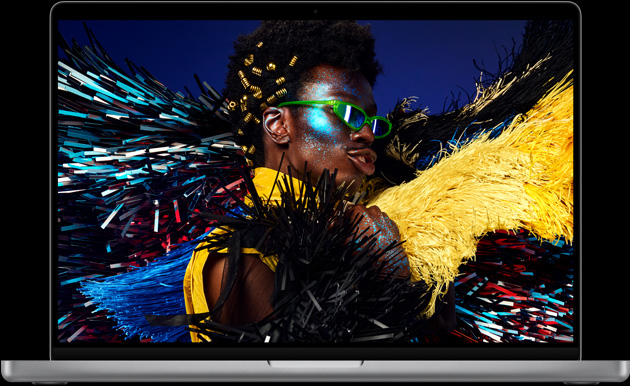

Learn moreLiquid Retina XDR display
16.2-inch (diagonal) Liquid Retina XDR display;2 3456x2234 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 1,000,000:1 contrast ratio
- XDR brightness: 1,000 nits sustained full-screen, 1,600 nits peak3 (HDR content only)
- SDR brightness: up to 1,000 nits (outdoor)
Colour
- 1 billion colours
- Wide colour (P3)
- True Tone technology
Refresh rates
- ProMotion technology for adaptive refresh rates up to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Configurable with:
Nano-texture display
24GB
24GB unified memory
Configurable to:
- 36GB (M4 Max with 14‑core CPU)
- or 48GB (M4 Pro and M4 Max with 16‑core CPU)
- or 64GB or 128GB (M4 Max with 16‑core CPU)
48GB
48GB unified memory
Configurable to:
- 64GB or 128GB (M4 Max with 16‑core CPU)
36GB
36GB unified memory
Configurable to:
- 48GB, 64GB or 128GB (M4 Max with 16‑core CPU)
48GB
48GB unified memory
Configurable to:
- 64GB or 128GB
M4 Pro
- Up to 24 hours video streaming
- Up to 17 hours wireless web
- 100-watt-hour lithium-polymer battery20
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable
- Fast-charge capable with included 140W USB-C Power Adapter
M4 Max
- Up to 21 hours video streaming
- Up to 14 hours wireless web
- 100-watt-hour lithium-polymer battery20
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable
- Fast-charge capable with included 140W USB-C Power Adapter
512GB
512GB SSD
Configurable to:
1TB, 2TB or 4TB
512GB
512GB SSD
Configurable to:
1TB, 2TB or 4TB
1TB
1TB SSD
Configurable to:
2TB, 4TB or 8TB
1TB
1TB SSD
Configurable to:
2TB, 4TB or 8TB
SDXC card slot
HDMI port
3.5mm headphone jack
MagSafe 3 port
Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
headphone jack
M4 Pro
- Simultaneously supports full native resolution on the built-in display at 1 billion colours and:
- Up to two external displays with up to 6K resolution at 60Hz over Thunderbolt, or one external display with up to 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI
- One external display supported at 8K resolution at 60Hz or one external display at 4K resolution at 240Hz over HDMI
M4 Max
- Simultaneously supports full native resolution on the built-in display at 1 billion colours and:
- Up to four external displays: up to three external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI
- Up to three external displays: up to two external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 8K resolution at 60Hz or one external display with 4K resolution at 240Hz over HDMI
Thunderbolt 5 digital video output
Support for native DisplayPort 2.1 output over USB‑C
HDMI digital video output
Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Supported formats include HEVC, H.264, AV1 and ProRes
- HDR with Dolby Vision, HDR10+/HDR10 and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos
Backlit Magic Keyboard with:
- 78 (US) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted “T” arrangement
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing and Multi‑Touch gestures
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- High‑fidelity six‑speaker sound system with force‑cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built‑in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro and AirPods Max9
- Studio‑quality three‑mic array with high signal‑to‑noise ratio and directional beamforming
- 3.5mm headphone jack with advanced support for high‑impedance headphones
- HDMI port supports multi‑channel audio output
Accessibility features help people with disabilities get the most out of their new MacBook Pro. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.
Learn moreFeatures include:
- Voice Control
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Siri and Dictation
- Switch Control
- Closed Captions
- Text to Speech
- 16-inch MacBook Pro
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2m)
- Polishing cloth (only with nano-texture display option)
In the United Kingdom, consumers are entitled to a free-of-charge repair or replacement, by the seller, of goods that do not conform with the contract of sale. Under English law, consumers have up to six years from the date of delivery to exercise their rights; however, various factors may impact your eligibility to receive these remedies. For more details, click here.
Your MacBook Pro also comes with 90 days of complimentary technical support and a one-year limited warranty from Apple. To learn more about how Apple will service your MacBook Pro, click here.
Purchase AppleCare+ to get expert technical support and hardware coverage, including unlimited repairs for accidental damage from handling, each subject to an excess fee. For more information, click here.
- Configure your MacBook Pro with these options at apple.com:
- M4 Max with 14‑core CPU, 32‑core GPU and 16‑core Neural Engine
- M4 Max with 16‑core CPU, 40‑core GPU and 16‑core Neural Engine
- 36GB unified memory (M4 Max with 14‑core CPU)
- 48GB unified memory (M4 Pro and M4 Max with 16‑core CPU)
- 64GB unified memory (M4 Max with 16‑core CPU)
- 128GB unified memory (M4 Max with 16‑core CPU)
- 1TB, 2TB or 4TB SSD (M4 Pro and M4 Max)
- 8TB SSD (M4 Max)
- Nano-texture display
and
the
Environment
Environmental impact
The 16‑inch MacBook Pro is designed to reduce environmental impact:13
See the 16-inch MacBook Pro Product Environmental Report (PDF)Progress towards Apple 2030
- 40% recycled content14
- Over 45% of manufacturing electricity sourced from low‑carbon electricity15
- 45% emissions reduction against business‑as‑usual scenario as modelled by Apple21
Materials
- 100% recycled aluminium in the enclosure
- 100% recycled rare earth elements in all magnets
- 100% recycled tin in the solder of multiple printed circuit boards
- 100% recycled copper in multiple printed circuit boards and in multiple thermal module components
- 100% recycled gold in the plating of multiple printed circuit boards
- 90% recycled steel in the keyboard feature plate
- 35% or more recycled plastic in 11 components
Energy
- Over 45% of manufacturing electricity for the 16‑inch MacBook Pro is sourced from low‑carbon electricity15
- ENERGY STAR® certified16
Packaging
- 100% fibre‑based packaging17
- 50% recycled content in fibre packaging
Waste
No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Programme
Smarter chemistry19
- Arsenic‑free glass
- Mercury-, BFR- and PVC‑free
